In the Aeronautics Industry, the margin for error is non-existent. Every component, from the smallest valve to large engine cylinders, must meet rigorous cleanliness standards to ensure flight safety and operational efficiency.
To meet these demands, we have developed a high-capacity, 4-tank ultrasonic cleaning system specifically engineered for the intensive cleaning of aeronautical cylinders. This automated solution combines chemical precision, mechanical power, and thermal control.
The 4-Stage Cleaning Architecture
A single wash is rarely enough for aerospace components. Our system utilizes a sequential process across four 300-liter tanks to ensure a pristine finish:
1. Ultrasonic Cleaning with Waterflow System
The process begins with a deep ultrasonic wash. The waterflow system is critical here; it creates a continuous movement that prevents contaminants from settling back onto the parts, ensuring that once the grease or carbon is removed, it stays away.
2. Hot Rinsing
The second stage involves a high-temperature rinse. This prepares the metal by removing residual cleaning agents and maintaining the component’s thermal energy for the subsequent stages.
3. Advanced Rinsing: US + DI Water
For aeronautical parts, “clean” isn’t enough—it must be “microscopically pure.” This tank combines Ultrasonics (US) with Deionized (DI) Water. The DI water ensures a spot-free finish, removing all mineral traces that could lead to corrosion or interfere with high-precision inspections.
4. Precision Drying at 100°C
The final stage is a dedicated drying tank. Equipped with a powerful blowing turbine, it operates at a constant 100°C—a specific temperature requested by our customer to ensure rapid evaporation and a moisture-free result, even in the most complex internal geometries of the cylinders.

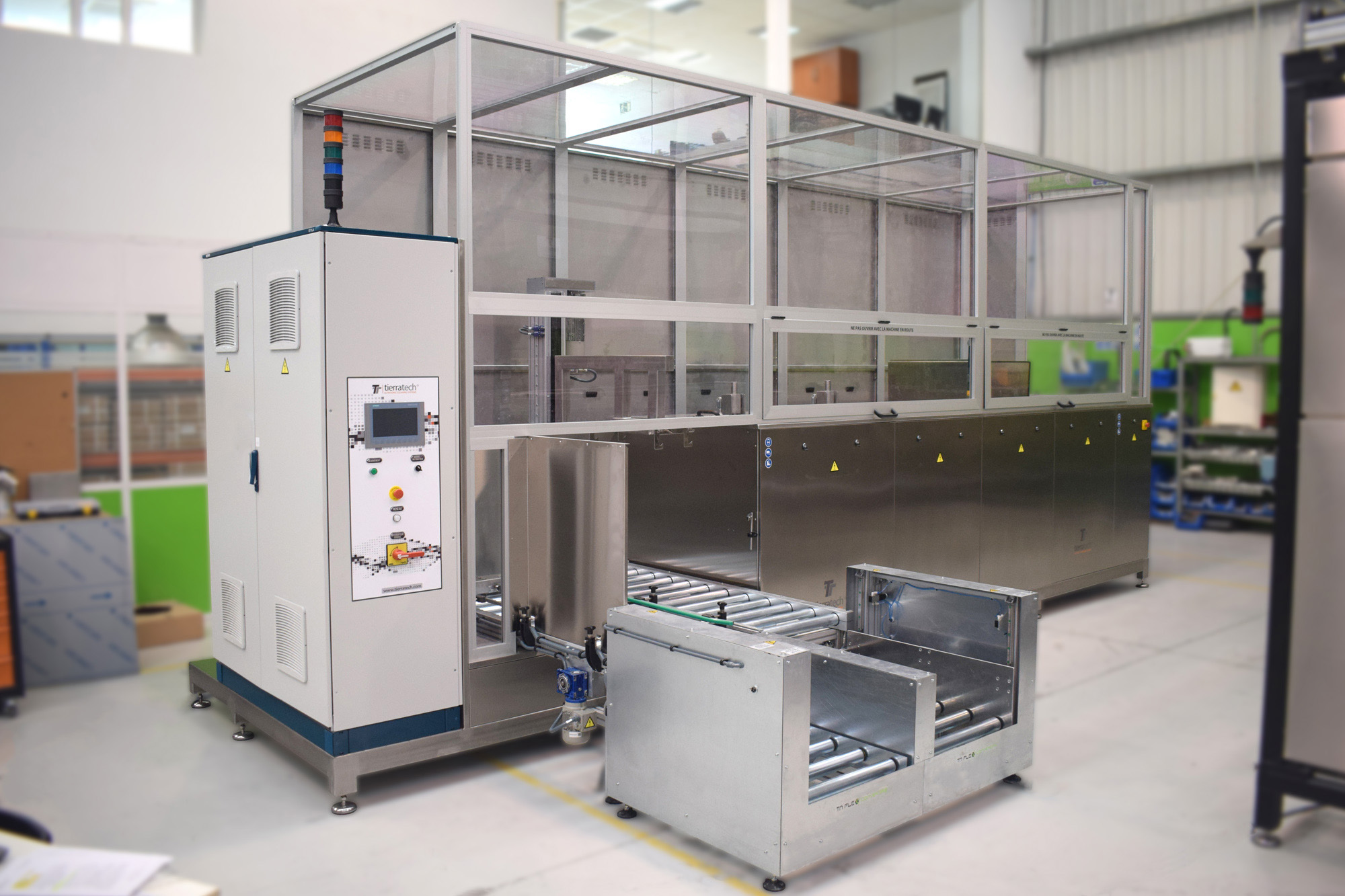

Automation and Operator Safety TT – 4 x 300N Automatic
Efficiency in a modern factory depends on reducing manual handling. Our system features:
-
Automatic Transfer System: A sophisticated lift and transport mechanism that manages the vertical and horizontal movement of baskets between tanks.
-
Load/Unload Roller Tables: Simplifies the intake and exit of heavy cylinders.
-
Full Safety Fairing: The entire machine is enclosed in a safety housing, protecting operators from high temperatures and noise while maintaining a clean work environment.
Technical Summary
| Feature | Specification |
| Industry | Aeronautics (Cylinder Cleaning) |
| Capacity | 4 x 300-Liter Tanks |
| Drying Power | High-pressure turbine at 100°C |
| Movement | Fully automated X-Y transfer system |
| Safety | Complete machine fairing and roller integration |
Conclusion
This 1,200-liter total capacity system represents the gold standard for MRO (Maintenance, Repair, and Overhaul) and aeronautical manufacturing. By integrating deionized water, ultrasonic precision, and full automation, we help our customers achieve faster turnaround times without ever compromising on quality.
