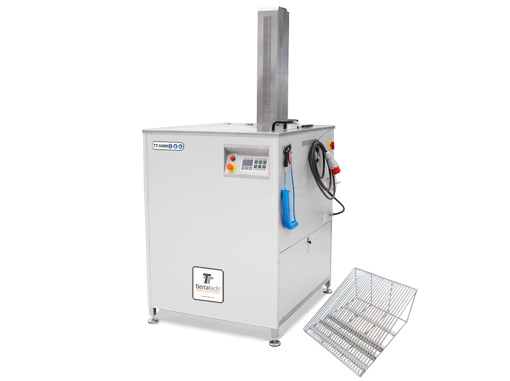

TT-540 SAWMILL
Tank capacity
540 litres
Ultrasonic power
3400W (6800W p-p)
Power supply
400V
Heating element
9000W
Useful dimensions
680 x 730 x 700 mm
Internal dimensions
750 x 800 x 950 mm
External dimensions
1420 x 1290 x 1145 mm
Weight
500 kg
- 1 ultrasonic generator with an output power of 3400W (6800W p-p)
- 2 submersibles emitters with a power of 1700W (3400W p-p) made of 2.5 mm thick stainless steel AISI 316. The emitter contains 34 high-performance IBL piezo-electric transducers in titanium steel
- Working frequency: 40 KHz sweep system ± 2%
- 7” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 350 kg
- One rack to accommodate 30 disks up to 600 mm diameter
- ½“ fill ball valve and 1½” drain ball valve
- Height-adjustable silentblock legs
- Insulated tank cover in stainless steel with pneumatic shock absorber
- Air blow gun for drying the parts
- (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
