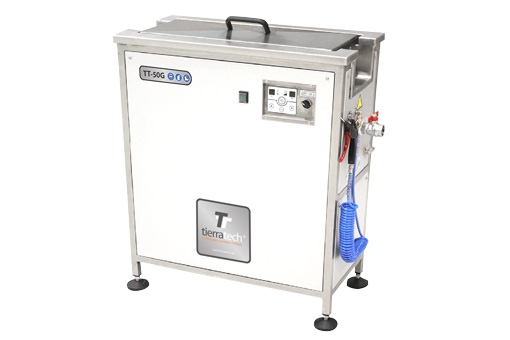

TT - 50G GRAPHIC INDUSTRY
The TT-50G Graphic Industry ultrasonic cleaning equipment is a compact yet powerful system engineered for professional cleaning in the graphic arts sector. Operating on a 240V power supply, it includes dual 450W heating elements and delivers 700W of ultrasonic power (1400W p-p) through a high-efficiency ultrasonic generator rated at 1700W (3400W p-p).
This unit ensures precise, consistent cleaning of delicate components such as anilox rollers, ink trays, and printing cylinders. Its advanced control panel includes a main breaker, degas function, ultrasound timer, adjustable temperature settings, and power level selector (50–100%).
Trust the TT-50G to deliver powerful, reliable ultrasonic cleaning tailored to the needs of the graphic industry—compact in size, superior in performance.
- 1 ultrasonic generator with an output power of 800Wp (1600Wp-p)
- Working frequency: 40 KHz sweep system ± 2%
- 16 high-performance IBL piezo-electric transducers in titanium steel.
- Maximum diameter of the roller in the area to be cleaned: Ø 120mm
- Minimum diameter of the roller in the area to be cleaned: Ø 60mm
- Minimum length of the area to be cleaned from the roller: 100mm
- Maximum length of the area to be cleaned from the roller: 900mm
- Maximum distance between roller supports: 967mm
- Main breaker
- DEGAS system to degas water
- Ultrasounds timer
- Temperature selector
- Power level selector: 50% – 100%
- Tank made of 2 mm in thick stainless stell AISI 316L
- External panel in 1 mm in thick fingerprint resistant steel
- 20 mmin thick thermo-acoustic insulation
- Rolling System: Support that allows to rotate the roller in a continuous way with 7.2W AC synchronous motor
- 1” drain ball valve
- Height-adjustable silentblock legs
- Tank cover in stainless steel with pneumatic shock absorber
- Air blow gun for drying the parts
