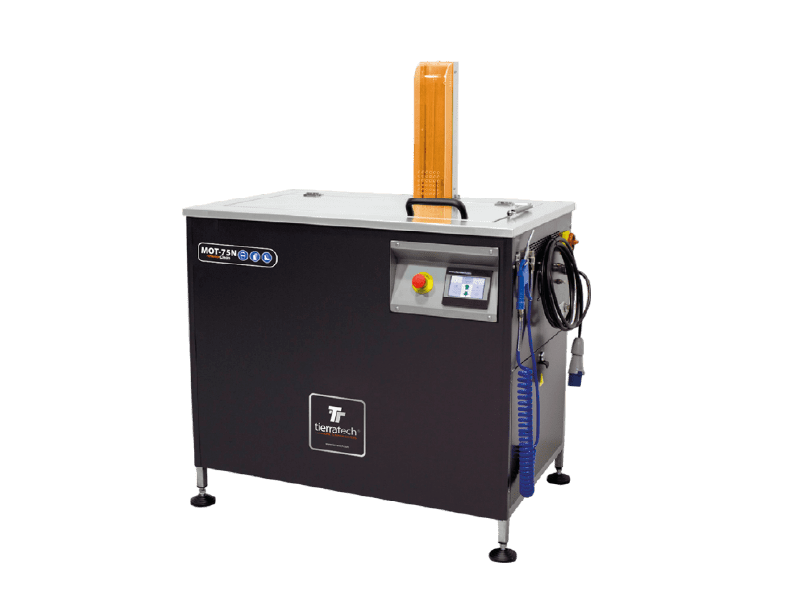

MOT-75N

TECHNICAL DATA

• Capacity: 75 l
• Internal dimensions: 26” x 15” x 19” in
• Useful basket measurements: 24” x 13” x 11” in
• External measurements: 50” x 29” x 36″ in

• Weight: 286 Lb

ELECTRICAL CHARACTERISTICS

• Power Supply: 230V
• Heating element: 2250W

ULTRASONIC CHARACTERISTICS

• Ultrasonic power: 1000Wp (2000W p-p)
• 1 ultrasonic generator with an output power of 1000Wp (2000W p-p)
• 1 submergible emitter with 1000Wp (2000W p-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
• Working frequency: 40 KHz sweep system ± 2%

CONTROL PANEL

• Integrated control panel  with 7″ TFT screen.
    – Time and temperature control.
    – Movement button (up – down – shaking).
    – US button (connect – disconnect), direct ultrasonic alarms and selectors.
    – Heating button (on – off).
    – WFS/Filter button (optional) (on – off).
    – START-STOP button (connect – disconnect cycle).
    – ON-OFF button (on – off control).
    – Capacity to work with 22 programmable cycles, protected by password.
    – Temperature control through PT100, over temperature safety and breakage sensor.
    – Weekly programmer, for preheating and turning off the machine.
    – Level control.
    – IP65 protection.

FINISH AND ACCESORIES

• Tank built in INOX AISI 304 Stainless steel, 0,08” inch thick
• External panel in fingerprint-resistant steel, 0,03” inch thick
• Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick
• Reinforced pneumatic platform for loading and unloading up to 66 lb
• 1” inch draining ball valve
• Height adjustable legs
• Insulated tank cover in Stainless-Steel with pneumatic shock absorber
• Air blow-gun for drying parts
• Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
• (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud
