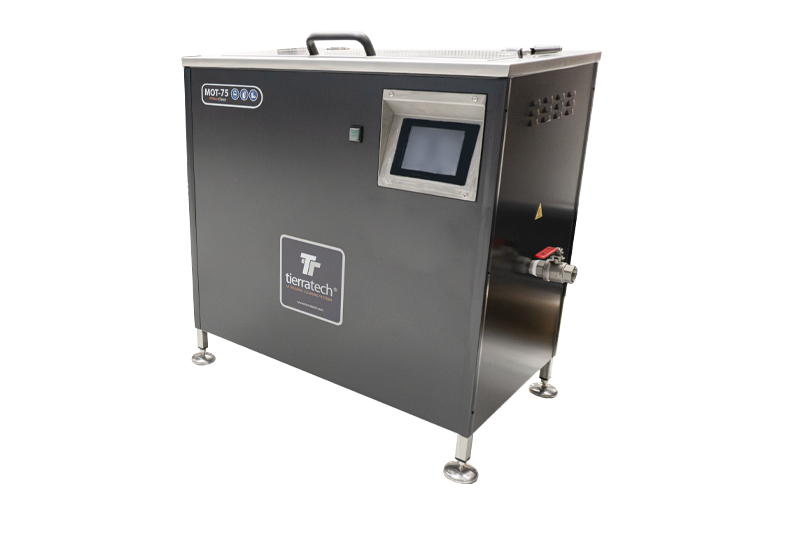

MOT-75
TECHNICAL DATA
- Capacity: 75 litres
- Internal dimensions: 700 x 350 x 400 mm
- Useful basket measurements: 650 x 300 x 290 mm
- External measurements: 1075 x 575 x 900 mm
- Weight: 71 kg
ELECTRICAL CHARACTERISTICS
- Power Supply: 400V+3F+TF / 14A
- Heating element: 3x450W
ULTRASONIC CHARACTERISTICS
- Ultrasonic power: 800Wp (1600Wp-p)
- 1 ultrasonic generator with an output power of 800Wp (1600Wp-p)
- Working frequency: 40 KHz sweep system ± 2%
- 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
CONTROL PANEL
- General switch
- DEGAS system to degas water
- Ultrasounds timer
- Temperature selector
- Power level selector: 50% – 100%
FINISH AND ACCESORIES
- Tank built in stainless steel AISI 316 of 2 mm.
- External panel in fingerprint-resistant steel, 1 mm.
- Thermo-acustic isolator K-Flex Duct Net, 20 mm thick.
- Integrated handles on the external panel
- Stainless steel basket with anchorage system for loading, unloading and draining pieces
- 25,4 mm inch draining ball valve
- Height-adjustable silentblock legs
- Insulated tank cover in stainless steel
