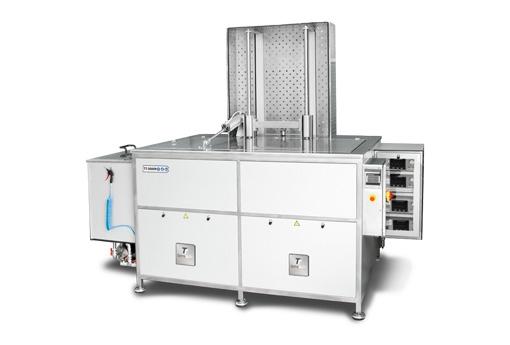

TT-3000N Ultrasonic Cleaning Equipment
TT-3000N Ultrasonic Cleaning Equipment
The TT-3000N ultrasonic cleaning equipment is designed for heavy-duty industrial applications, offering a 3,000-litre tank and a reinforced pneumatic platform that supports up to 1,500 kg.
Delivering 13,600 Wp (27,200 Wp-p) of ultrasonic power through 8 submersible emitters equipped with 34 high-performance IBL piezo-electric transducers, it ensures deep, uniform, and highly effective cleaning of large and complex parts.
Operating at a 40 kHz frequency with ±2% sweep system, the TT-3000N guarantees consistent ultrasonic performance across all surfaces. Its construction in 2.5 mm thick AISI 316L stainless steel and 28,000 W heating element ensures durability and reliability in the most demanding industrial environments.
This equipment is ideal for industrial cleaning of automotive, aerospace, naval, and heavy machinery components, providing precision, power, and efficiency for large-scale operations.
The TT-3000N is ideal for industrial sectors requiring high-capacity ultrasonic cleaning. It is perfectly suited for cleaning large and complex parts where precision, power, and efficiency are crucial. This equipment ensures optimal results in demanding industrial processes, providing a safe, reliable, and fast cleaning solution.
Key benefits
- Heavy industrial cleaning of large and complex parts
- Degreasing and removal of oils, grease, and residues
- High-capacity tank (3,000 L) with reinforced pneumatic platform for heavy loads
- Uniform ultrasonic energy for thorough and efficient cleaning
- Durable AISI 316L stainless steel construction for long service life
- High-power ultrasonic system to reduce cleaning time
- Suitable for automotive, aerospace, naval, and heavy machinery sectors
- Ultrasonic power: 13600Wp (27200W p-p)
- 4 ultrasonic generators with an output power of 13600Wp (27200W p-p)
- 8 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L steel, The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
- Working frequency: 40 KHz sweep system ± 2%
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- 6 outputs and 8 inputs temperature module PLC
- Tank made of 2,5 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 1500 kg
- 1½” drain ball valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
- Air blow gun for drying the parts
- Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in perfect condition
- (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
