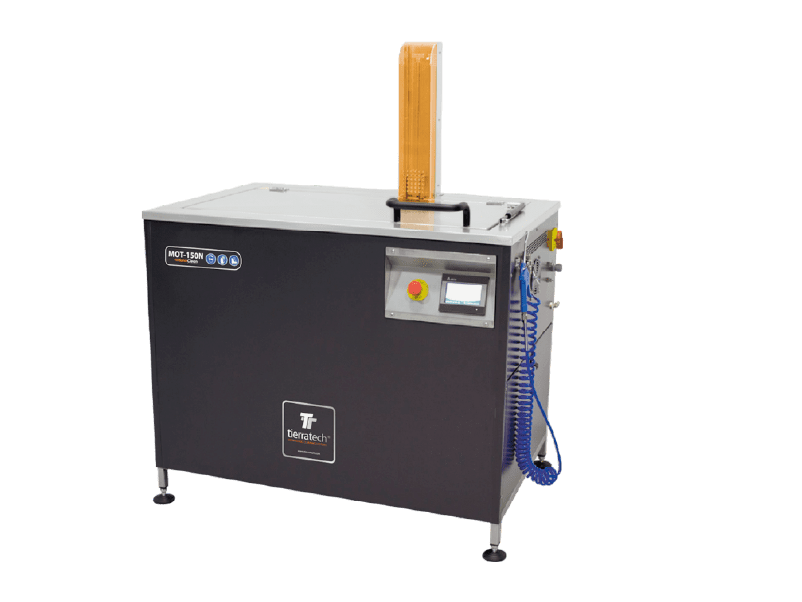

MOT-150N
TECHNICAL DATA
- Capacity: 150 litres
- Internal dimensions: 700 x 480 x 540 mm(excluding auxiliary tank)
- Useful basket measurements: 670 x 415 x 345 mm
- External measurements: 1355 x 825 x 945 mm
- Weight: 175 kg
- Pneumatic lifting platform: up to 60 kg
ELECTRICAL CHARACTERISTICS
- Power Supply: 230V / 400V
- Heating element: 3750W
ULTRASONIC CHARACTERISTICS
- Ultrasonic power: 1700Wp (3400Wp-p)
- 1 ultrasonic generator with an output power of 1700Wp (3400Wp-p)
- 1 submergible emitter with 1700Wp (3400Wp-p) of power built in INOX AISI 316 steel, 25,4 mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
- Working frequency: 40 KHz sweep system ± 2%
CONTROL PANEL
- Integrated control panel with 7″ TFT screen.
- Time and temperature control.
- Movement button (up – down – shaking).
- US button (connect – disconnect), direct ultrasonic alarms and selectors.
- Heating button (on – off).
- WFS/Filter button (optional) (on – off).
- START-STOP button (connect – disconnect cycle).
- ON-OFF button (on – off control).
- Capacity to work with 22 programmable cycles, protected by password.
- Temperature control through PT100, over temperature safety and breakage sensor.
- Weekly programmer, for preheating and turning off the machine.
- Level control.
- IP65 protection.
FINISH AND ACCESORIES
- Tank built in stainless steel AISI 304 of 2 mm.
- External panel in fingerprint-resistant steel, 1 mm thick.
- Thermo-acustic isolator K-Flex Duct Net, 20 mm thick.
- Reinforced pneumatic platform for loading and unloading up to 132 lb
- 25,4 mm draining ball valve
- Height adjustable legs
- Insulated tank cover in Stainless-Steel with pneumatic shock absorber
- Air blow-gun for drying parts
- Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
- (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud
