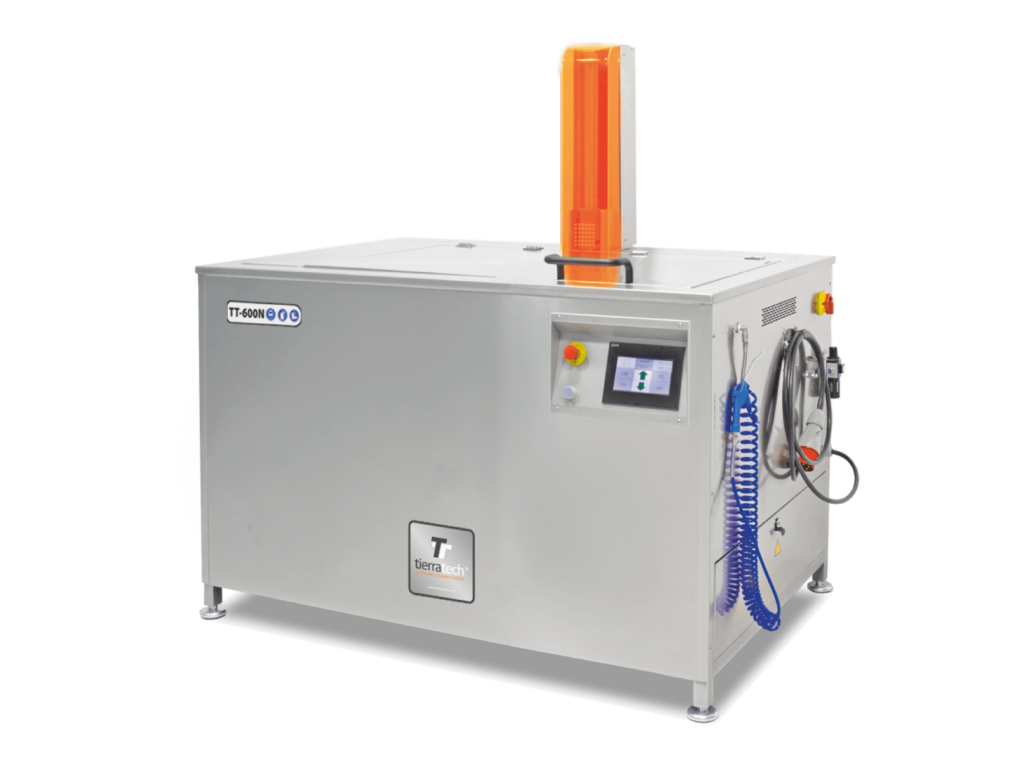

TT-600N Ultrasonic Cleaning Equipment
TT-600N Ultrasonic Cleaning Equipment
The TT-600N ultrasonic cleaning system is designed for high-demand industrial cleaning applications, providing powerful ultrasonic performance and precise control. Its 6000W effective ultrasonic power (12000 Wp-p) is delivered through three submersible emitters of 2000W each, ensuring deep cavitation and thorough cleaning of medium-to-large industrial components.
Equipped with a 4.3” touchscreen control panel, operators have intuitive access to ultrasonic cycle time, temperature settings, and optional system management. The TT-600N also features a programmable weekly calendar for automated operation, allowing efficient scheduling of cleaning cycles, and a PLC module with 6 outputs and 8 inputs for precise temperature regulation.
Constructed with a robust stainless steel tank, the system is resistant to corrosion and chemical agents, making it ideal for automotive, aerospace, electronics, and precision manufacturing sectors. Its combination of high ultrasonic power, programmable control, and durability makes the TT-600N a reliable and advanced solution for industrial cleaning tasks.
Applications
The TT-600N is ideal for industrial ultrasonic cleaning applications requiring precision, power, and repeatability:
Key Benefits
- Cleaning medium-to-large industrial components in automotive, aerospace, and precision manufacturing
- Degreasing and removal of oils, grease, and residues from complex parts
- High ultrasonic power for efficient cleaning of heavy-duty components
- Touchscreen and PLC control for intuitive operation and precise temperature management
- Programmable weekly calendar for automated cleaning cycles
- Durable stainless steel construction ensures chemical resistance and long-term reliability
- Reduces manual labor and cleaning times, optimizing production workflows
- Ultrasonic power: 5100Wp (10200W p-p)
- Ultrasonic generators with an output power of 5100Wp (10200W p-p)
- 3 submersible emitters with 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
- Working frequency: 40 KHz sweep system ± 2%
- 7” capacitive touch screen, functional and intuitive, providing access to ultrasonic time settings, temperature control, and peripheral or optional systems.
- Weekly programming available
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 350 kg
- 1½” drain ball valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
- Air blow gun for drying the parts
- Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
- (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud.
