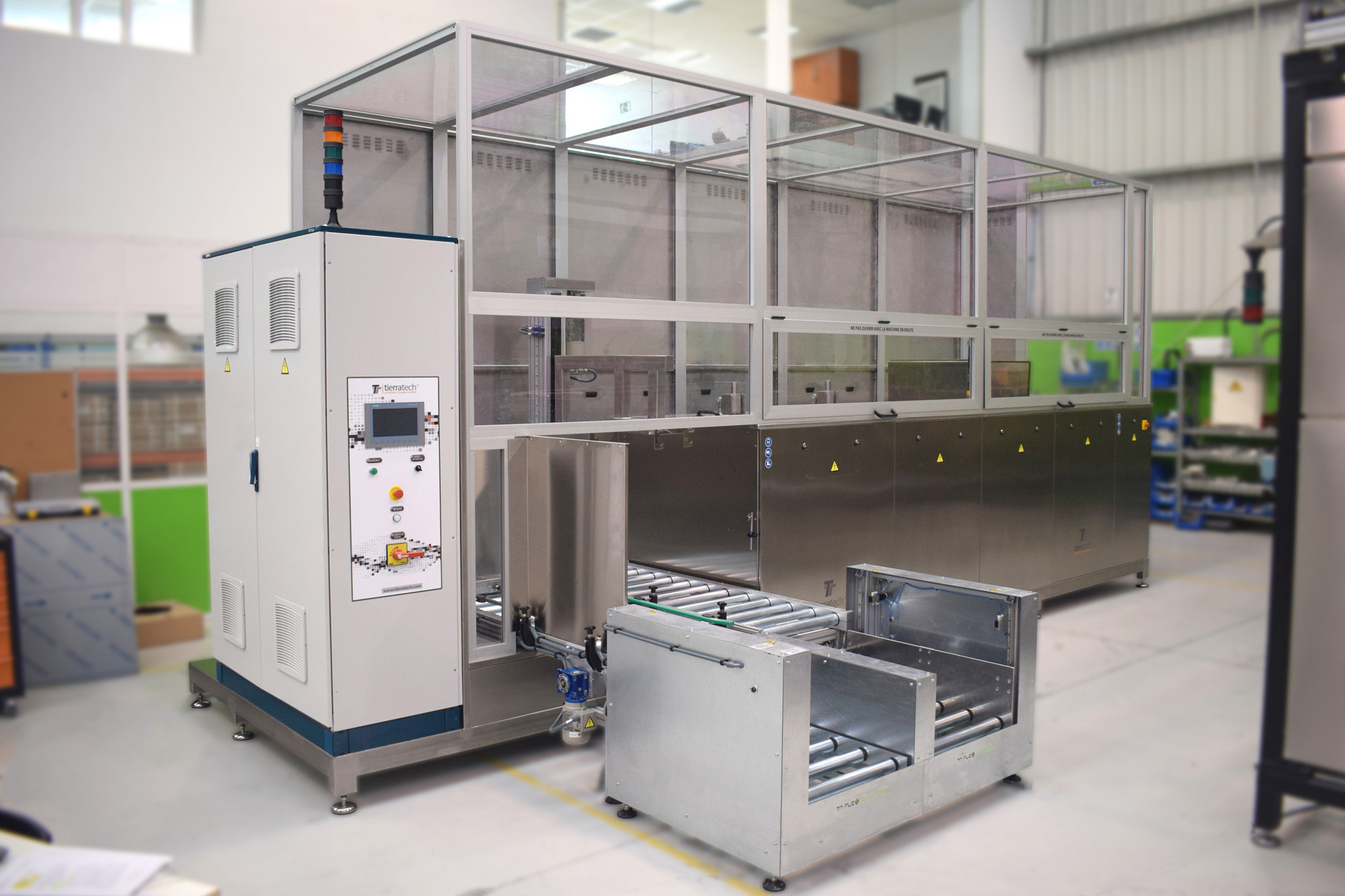

The TT-4 x 300N Automatic is a high-performance industrial ultrasonic cleaning machine specifically designed for demanding applications in the aeronautics sector. This four-tank system, with a capacity of 300 litres per tank, has been installed for an aerospace customer specializing in the cleaning of precision cylinders.
Engineered to meet strict aerospace quality standards, this automated solution ensures repeatable, validated cleaning processes for critical components where reliability and surface integrity are essential.
Four-Stage Ultrasonic Cleaning Process for Aerospace Components
The TT-4 x 300N integrates a complete multi-stage cleaning cycle designed for high-precision aeronautical parts:
-
Tank 1: Ultrasonic cleaning tank with integrated waterflow system for effective contaminant removal
-
Tank 2: Hot rinsing tank
-
Tank 3: Hot rinsing tank with ultrasonic assistance and DI (deionized) water
-
Tank 4: Drying tank equipped with a blowing turbine operating at 100°C (customer-specified temperature)
This structured process guarantees thorough removal of oils, particles, and process residues while ensuring optimal final surface cleanliness required in aerospace manufacturing and maintenance operations.
Fully Automated Handling and Safety Integration
The system incorporates a lift loading and unloading table with rollers, enabling safe and ergonomic part handling. Basket transfer is managed through an automatic system with vertical and horizontal movement, ensuring precision positioning between stages and minimizing manual intervention.
Additionally, the machine is equipped with a full safety enclosure (safety fairing), providing operator protection and compliance with industrial safety standards.
The TT-4 x 300N Automatic demonstrates how advanced industrial ultrasonic cleaning machines can deliver consistent, high-quality results in the aeronautics industry, where process control, repeatability, and component integrity are non-negotiable.
