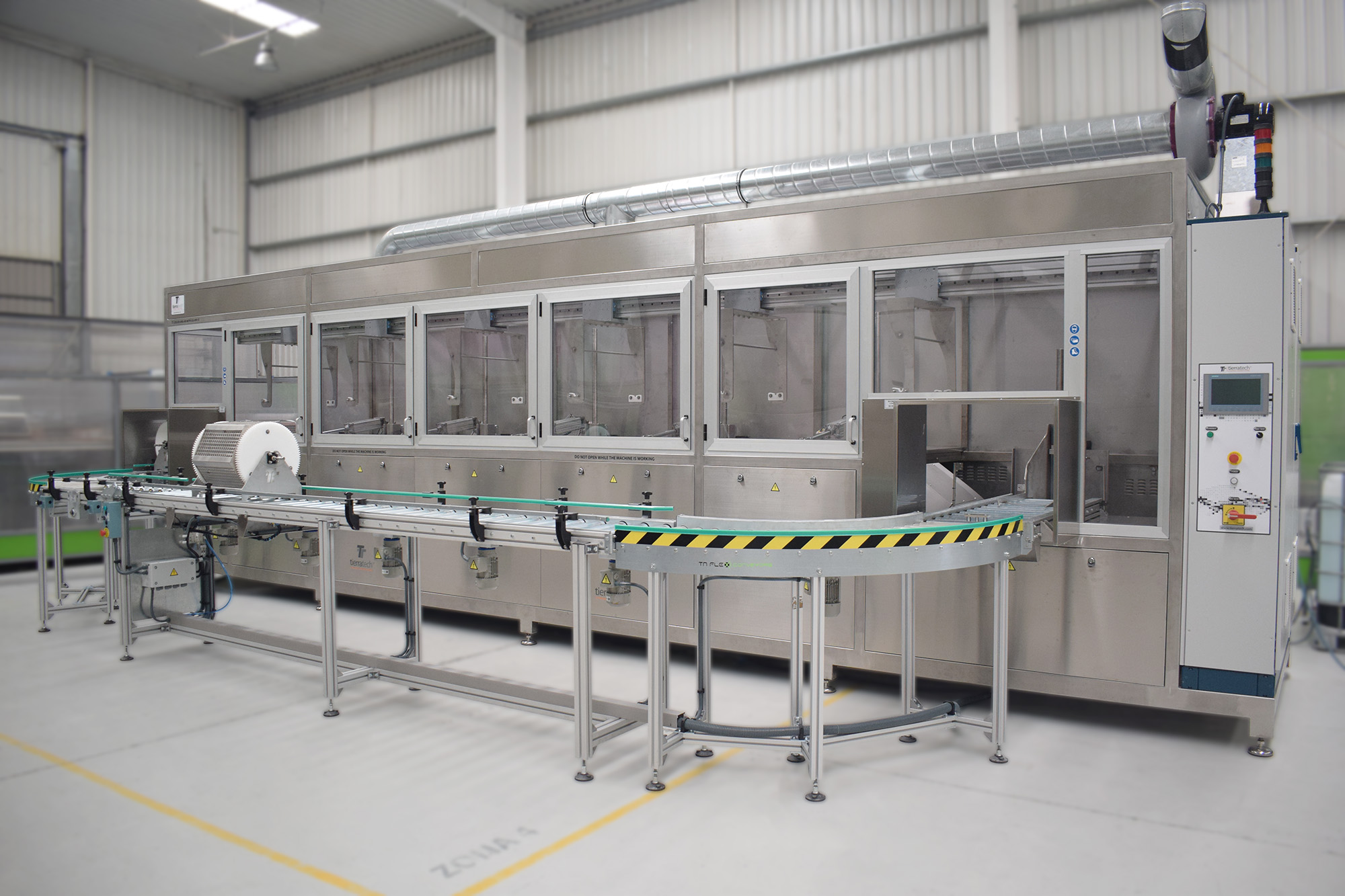

The TT-5×250 is a 5-tank industrial ultrasonic cleaning line designed for the automotive industry. Each tank has a capacity of 250 liters and is optimized for cleaning industrial springs and bushes, ensuring thorough residue removal and surface preparation.
Multistage Ultrasonic Cleaning for Automotive Components
The system consists of five dedicated tanks:
-
Tank 1: Ultrasonic cleaning tank with sloped bottom for efficient residue removal
-
Tank 2: Hot rinsing tank
-
Tank 3: Hot rinsing with ultrasonic and deionized water, ensuring perfect cleaning of the parts
-
Tank 4: Hot rinsing tank
-
Tank 5: Drying tank with controlled airflow
The integration of a special transport system moves all five basket-drums simultaneously into and out of the tanks, saving time and significantly shortening the production process.
Optimized Loading and Unloading for Efficiency
The system includes a C-shaped load and unload area, where emptied basket-drums are transported back to the initial loading position via a motorized-roller conveyor. This design maximizes throughput while minimizing operator intervention.
The TT-5×250 demonstrates how industrial ultrasonic cleaning machines can be tailored for high-volume automotive production, combining multistage cleaning, automated transport, and precision drying to deliver consistent, high-quality results.
