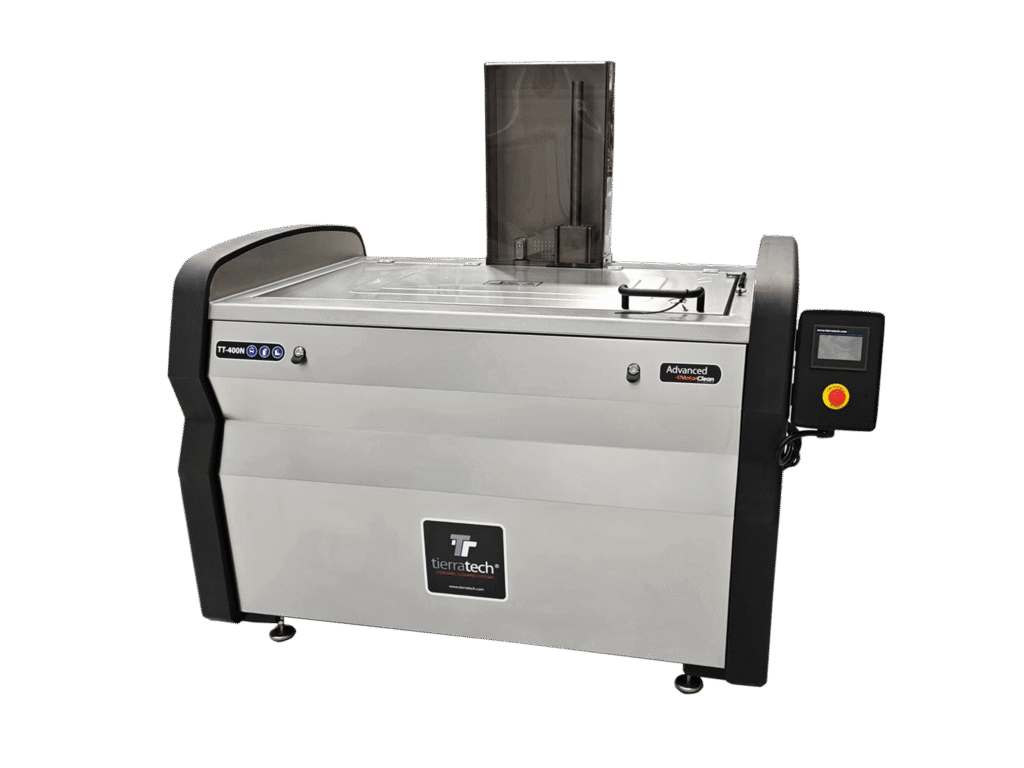

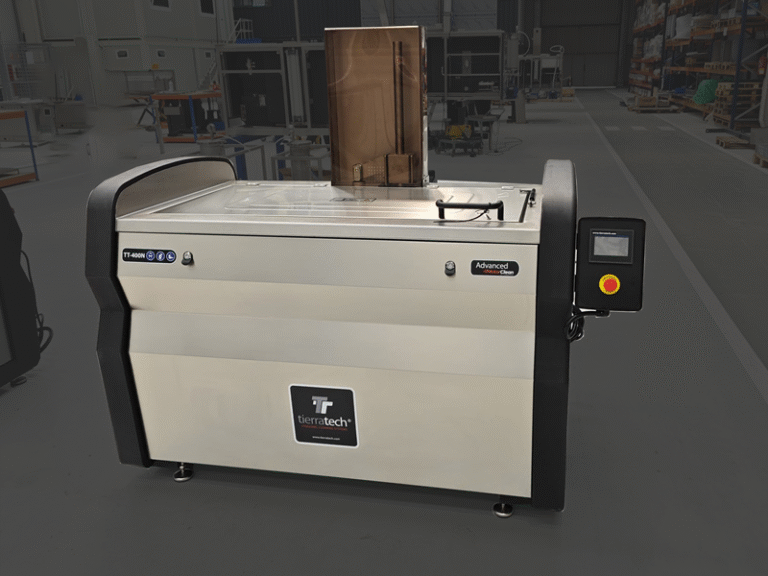

TT-400N ADVANCED
The TT-400N ADVANCED ultrasonic cleaning system is a high-capacity, high-performance solution engineered for the toughest cleaning tasks. With an impressive tank capacity of approximately 120 gallons and a heavy-duty pneumatic lifting platform supporting up to 529 lbs, this system delivers unmatched efficiency in degreasing, carbon removal, and descaling of large engine parts and industrial components.
Its powerful 2250W heating system ensures fast temperature recovery and consistent thermal control, optimizing every cleaning cycle. The advanced ultrasonic technology of TT-400N ADVANCED penetrates complex geometries and hard-to-reach areas, achieving deep and thorough cleaning without damaging sensitive surfaces.
Designed for demanding industrial environments, the TT-400N ADVANCED is the go-to solution for boosting productivity, reducing manual effort, and guaranteeing superior results.
- Ultrasonic generator, output power of 3400Wp (68000Wp-p) with automatic power and frequency wave monitoring.
- Working frequency 40 KHZ, Sweep System ± 2%.
- 1 submersible emitter with a power of 1700 WP (3400 Wp-p) made of 0,098” inch thinck stainless steel AISI 316L.
- 34 high-performance titanium-steel IBL piezoelectric transducers with 60W each.
- Functional and intuitive 7″ TFT LCD capacitive touch screen.
- Time control for equipment preheating, weekly calendar, alarms, US direct selectors, heating resistance, platform lift and lowering, continues vertical motion up and down system and water level control.
- Pneumatic platform made of stainless steel AISI 304L, with a loading capacity of up to 661Lb, adjustable rising and lowering flow and condensation filter.
- WFS (Waterflow system for oil separation), auxiliary tank for the collection of oils and particles floating on the surface of the main cleaning tank, and oil outlet and maintenance
- Heating element with a power of 7550W built resistant to high temperatures and corrosion.
