MOT-100N ADVANCED

Home » Ultrasonic cleaning equipment » Ultrasonic cleaning equipment » Motor Clean, ultrasonic cleaning equipment for automotive sector

MOT-100N ADVANCED

Capacity

30 Gallons

Ultrasonic power

1000 Wp (2000 w p-p)

Heating resistance

1000W

Platform dimensions

24”x12”x11” inch

Internal dimensions

25”x15”x19” inch

Power Supply

240V / 400V

Pneumatic lifting platform:

up to 132 Lb

Motor Clean is a range of devices and ultrasonic cleaning systems specifically designed for the purification of engine parts and components, as well as for multiple applications in the automotive sector.

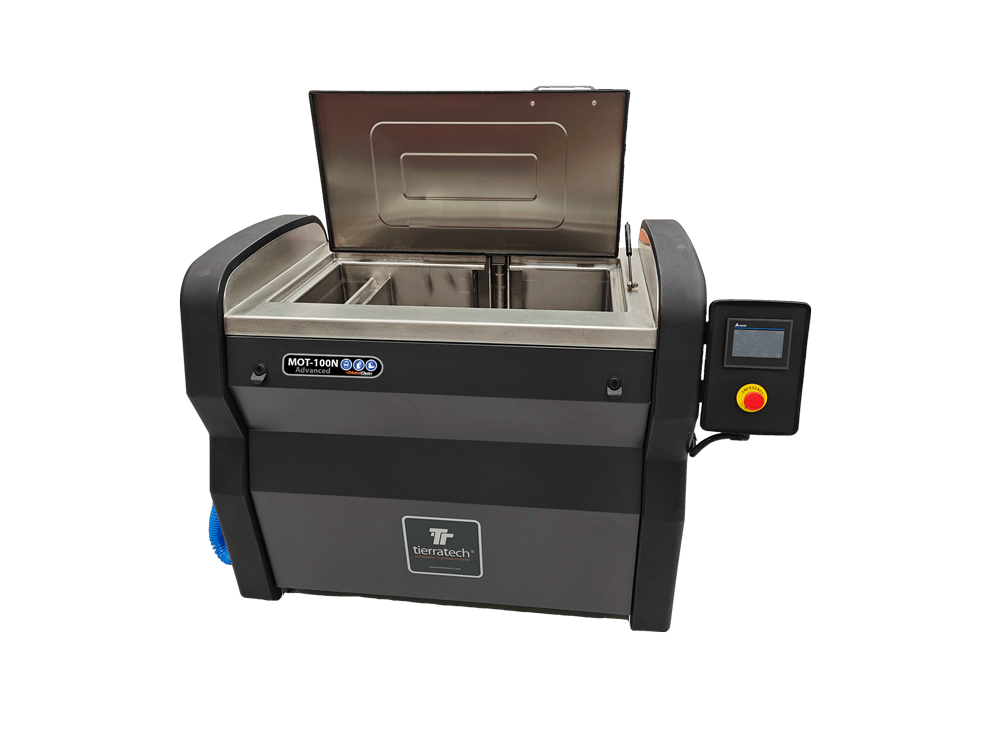

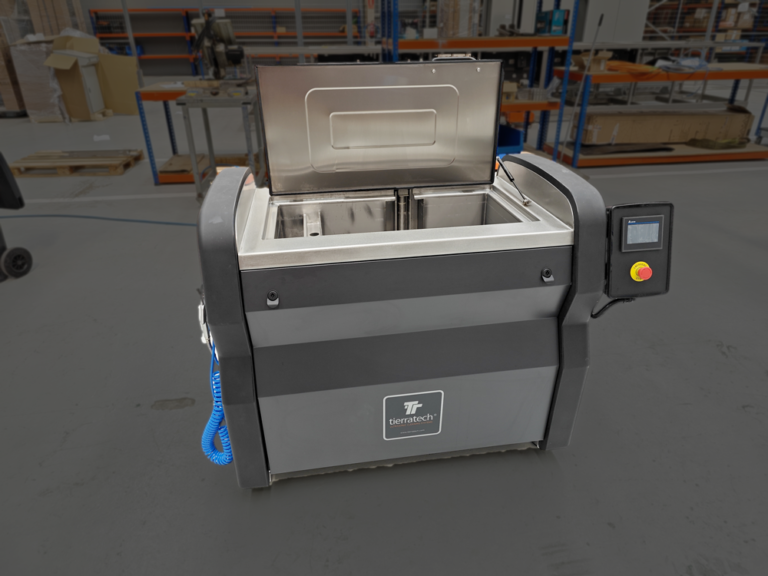

The innovative MOT-100N ADVANCED ultrasonic cleaning system, with a 115-liter tank capacity and a pneumatic lifting platform supporting up to 60 kg (132 lbs), offers unmatched advantages over traditional cleaning methods. Additionally, it features a 2250W heating system.

It is the ideal choice for degreasing, carbon removal, and descaling of engine parts and components, ensuring the best finishes by reaching all difficult-to-access areas, regardless of complexity, with no effort.

Ultrasonic power: 1000Wp (2000 Wp-p)
1 ultrasonic generator with an output power of 1000Wp (2000Wp-p)
2 submersible emitters with a power of 1000Wp (2000 Wp-p) made of 0.08″ inch thick stainless steel AISI 316L.
The emitters contains 34 PZT (lead zirconate titanate) piezoelectric transducers with aluminium alloy body.
Working frequency: 40 KHz sweep system ± 2%.

7” Screen & TFT Display
Intuitive display with direct access to all functions and the possibility to create different work programs.
Programming in all languages, weekly calendar, time control for equipment preheating and alarms

Tank made of 2 mm thick stainless steel INOX AISI 304L.
External panel of 1mm thick fingerprint-resistant steel (black colour).
Black polyethylene side panel.
20 mm thick thermo-acoustic insulation.
Reinforced pneumatic platform for loading and unloading up to 132 Lb
AISI 304L stainless steel cover with thermal-acoustic insulation and opening/closing system with pneumatic
cylinder.
WFS (oil separator), independent tank for the collection of oils and particles on the surface of the main cleaning tank, with oil drainage tank and maintenance with a capacity of 75 litres
OPTIONAL: TTF bag filter or FQ101 cartridge filter for the removal of sludge from the bottom of the tank, made
of AISI 304 stainless steel, pressure gauge and the possibility of integrating bags from 5 to 200 microns or
cartridges from 0.2 to 105 microns.
