MOT-200N ADVANCED

Home » Ultrasonic cleaning equipment » Ultrasonic cleaning equipment » Motor Clean, ultrasonic cleaning equipment for automotive sector

MOT-200N ADVANCED

Capacity

57 gallons

Ultrasonic power

1700Wp (3400Wp-p)

Heating resistance

3750W

Platform dimensions

28″x18″x14″ inch

Internal dimensions

29″x202x23″ inch

Power Supply

240V / 400V

Pneumatic lifting platform:

up to 440 Lb

Motor Clean is a range of ultrasonic cleaning equipment and systems specially designed for automotive professionals.

At Tierratech, we fully understand the industry’s cleaning demands, which is why we have developed the most efficient cleaning system, ensuring optimal quality in our clients’ processes.

The cutting-edge MOT-200N ADVANCED ultrasonic cleaning system is the best choice for cleaning, degreasing, carbon removal, and descaling of engine parts and components. It delivers flawless finishes by reaching all hard-to-access areas, regardless of complexity, with no effort.

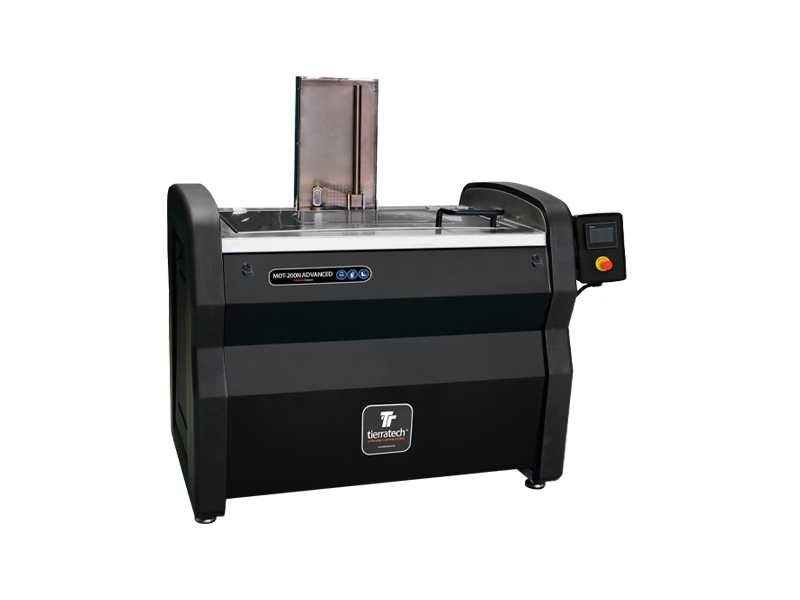

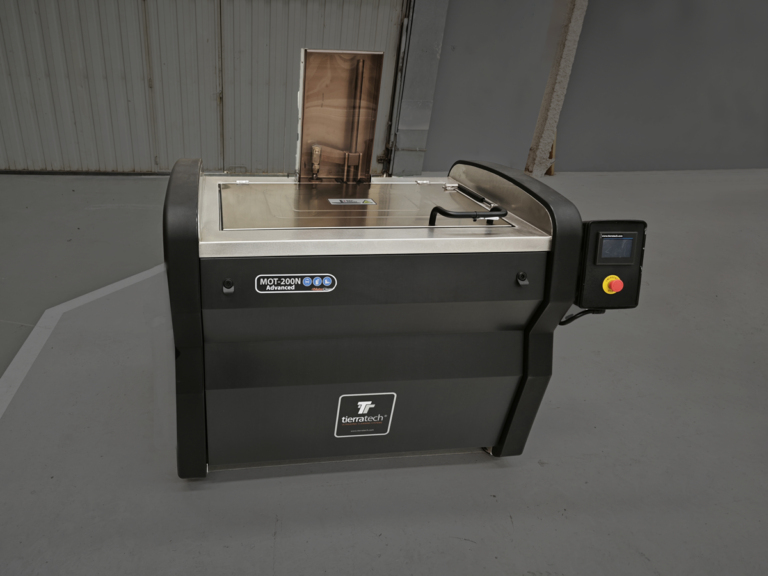

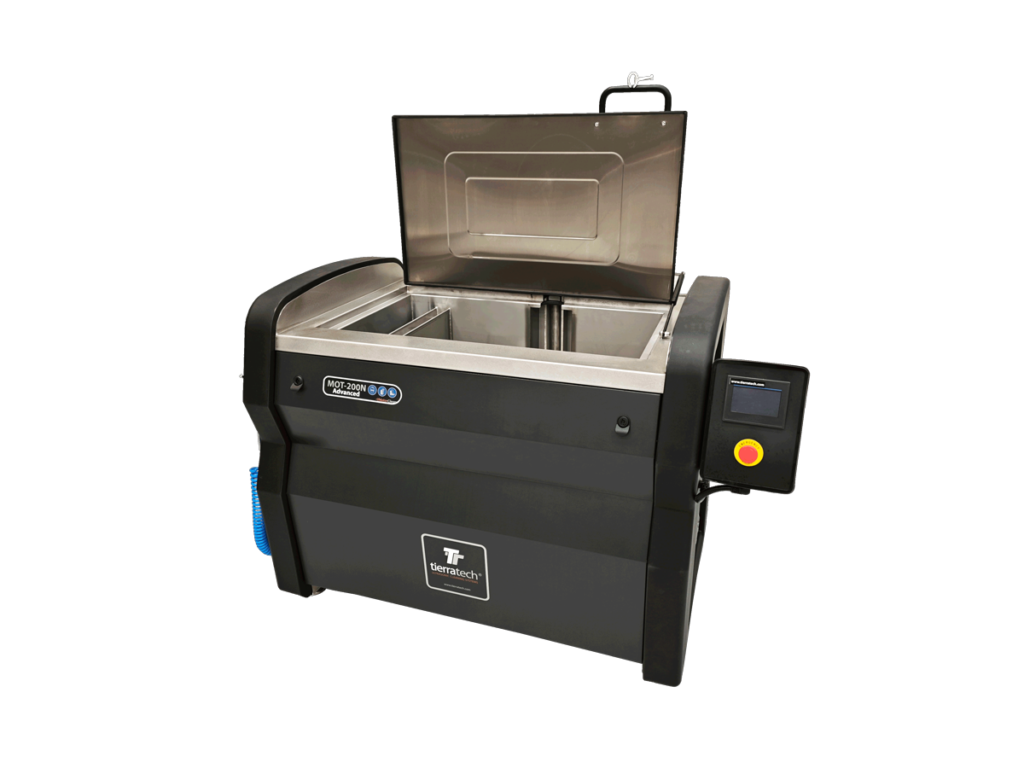

ultrasonic cleaning system MOT-200N ADVANCED

Ultrasonic power: 1700W (3400Wp-p)
Ultrasonic generator, output power of 1700Wp (3400Wp-p) with automatic power and frequency wave monitoring
1 submersible emitter made of 0,098” inch thinck stainless steel AISI 316L, with 38 high-performance titanium-steel IBL piezoelectric transducers with 60W each.
Working frequency: 40 KHz sweep system ± 2%.

7” Screen & TFT Display
Time control for equipment preheating, weekly calendar, alarms, US direct selectors, heating resistance, platform lift and lowering, continues vertical motion up and down system and water level control.

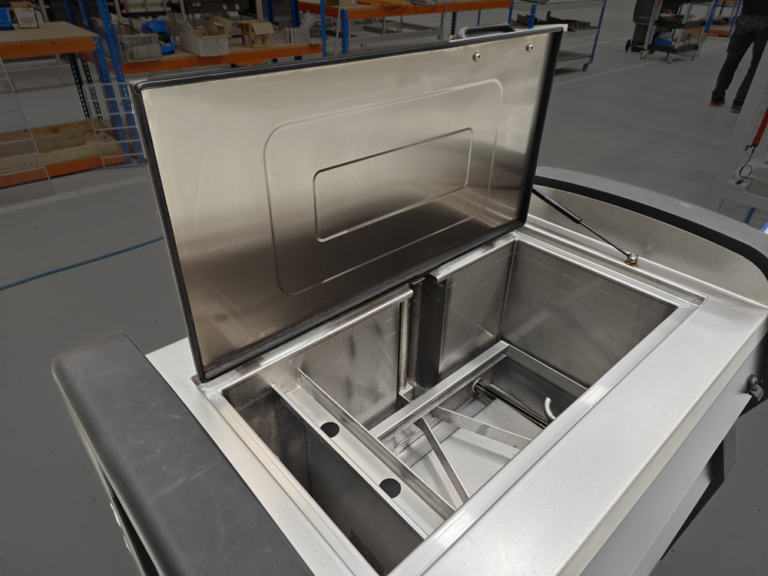

Ultrasonic cleaning tank made of 0.07” stainless steel AISI 304L and with 0.78” thermo-acoustic insulation.
Tank lid made of stainless steel AISI 304 with 0.6” thick thermally insulated.
Pneumatic platform made of stainless steel AISI 304L, with a loading capacity of up to 440 Lb, adjustable rising and lowering flow and condensation filter.
WFS (Waterflow system for oil separation), auxiliary tank for the collection of oils and particles floating on the surface of the main cleaning tank, and oil outlet and maintenance.
* Filter bag TTF1 (optional) for removal of sludge from the bottom of the tank built in AISI 304L stainless steel, manometer and the possibility of integrating bags of 5 to 200 microns.
