MOT-30
MOT-30
Capacity
8 gallons
Ultrasonic power
600Wp (1200Wp-p)
Weight
75 Lb
Useful dimensions
20” x 10” x 7” inc
Internal dimensions
22” x 12” x 10” inc
Heating element
450W
Power Supply
230V/10A

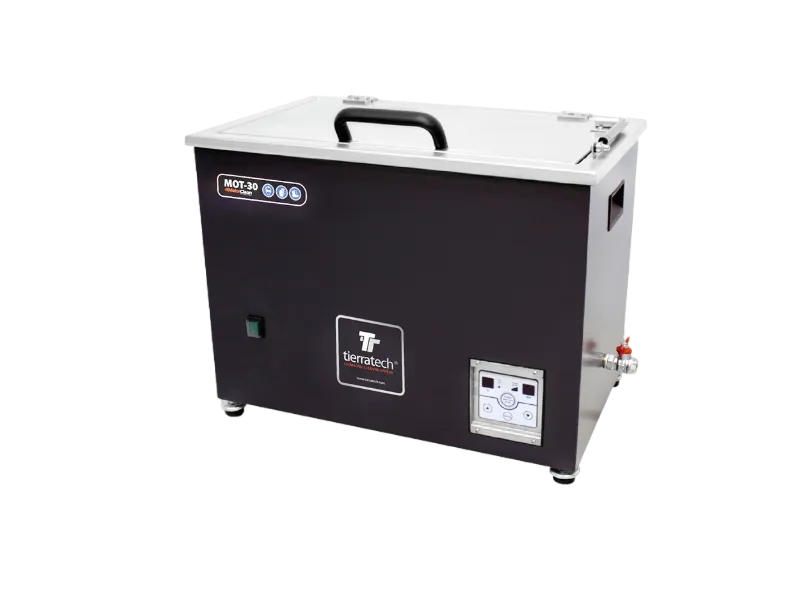

Ultrasonic cleaning equipment MOT-30 is an unit with an 8-gallon capacity. Weighing 75 lbs, it operates with a 230V / 10A power supply and features a heating system with 450W elements. Its ultrasonic power is 600Wp (1200Wp-p) generated by one ultrasonic transducer.
The unit operates at a 40 KHz frequency with a ± 2% sweep system and includes 12 PZT piezoelectric transducers with an aluminum alloy body, ensuring high performance and efficiency in cleaning industrial parts.
The ultrasonic cleaning equipment MOT-30 provides deep and effective cleaning, optimizing your equipment maintenance
- Ultrasonic power: 600Wp (1200Wp-p)
- 1 ultrasonic generator with an output power of 600Wp (1200Wp-p)
- Working frequency: 40 KHz sweep system ± 2%
- 12 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
- General switch
- DEGAS system to degas water
- Ultrasounds timer
- Temperature selector
- Power level selector: 50% – 100%
- Tank built in INOX AISI 316 Stainless steel, 0,08” inch thick
- External panel in fingerprint-resistant steel, 0,04” inch thick
- Thermo-acustic isolator K-Flex Duct Net, 0,79” inch thick
- Side handles integrated on the external
- Stainless steel basket with anchorage system for loading, unloading and draining pieces
- ½” inch draining ball valve
- Height-adjustable silentblock legs
- Insulated tank cover in stainless steel with pneumatic shock absorber
