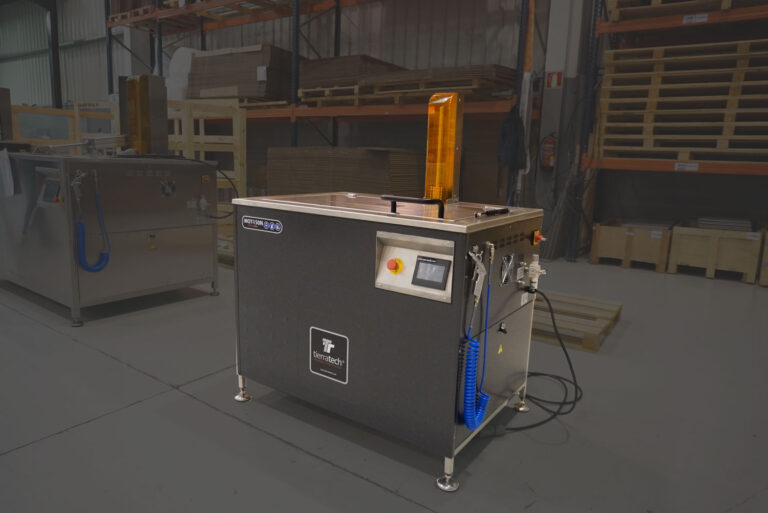

MOT-150N

TECHNICAL DATA

• Capacity: 40 gallons
• Internal dimensions: 28” x 19” x 21”
• Useful measurements: 26” x 16” x 14”
• Platform measurements: 26” x 16”
• External measurements: 53” x 32” x 37″
• Weight: 385 Lb
• Pneumatic load platform: Up to 132 lb

ELECTRICAL CHARACTERISTICS

• Power Supply: 230V / 400V
• Heating element: 3750W



ULTRASONIC CHARACTERISTICS

• Ultrasonic power: 2000Wp (4000Wp-p)
• 1 ultrasonic generator with an output power of 2000Wp (4000Wp-p)
• 1 submergible emitter with 2000Wp (4000Wp-p) of power built in INOX AISI 304 steel, 1” inch thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
• Working frequency: 40 KHz sweep system ± 2%

CONTROL PANEL

• Integrated control panel  with 7″ TFT screen.
    – Time and temperature control.
    – Movement button (up – down – shaking).
    – US button (connect – disconnect), direct ultrasonic alarms and selectors.
    – Heating button (on – off).
    – WFS/Filter button (optional) (on – off).
    – START-STOP button (connect – disconnect cycle).
    – ON-OFF button (on – off control).
    – Capacity to work with 22 programmable cycles, protected by password.
    – Temperature control through PT100, over temperature safety and breakage sensor.
    – Weekly programmer, for preheating and turning off the machine.
    – Level control.
    – IP65 protection.

FINISH AND ACCESORIES

• Tank built in INOX AISI 304 stainless steel, 0,08” inch thick
• External panel in fingerprint-resistant steel, 0,03” inch thick
• Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick
• Reinforced pneumatic platform for loading and unloading up to 132 lb
• 1” inch draining ball valve
• Height adjustable legs
• Insulated tank cover in stainless steel with pneumatic shock absorber
• Air blow-gun for drying parts
• Integrated waterflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
• (Optional): Filtration system (stainless steel filter with polypropylene/polyester bag) for waste and mud
