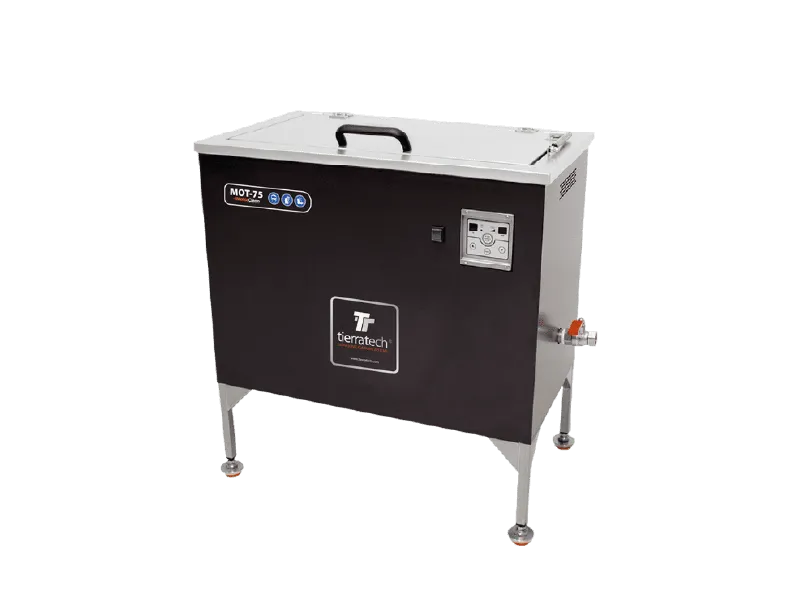

MOT-75
MOT-75
The ultrasonic cleaning equipment MOT-75 offers 800Wp (1600Wp-p) of ultrasonic power, ensuring thorough and efficient cleaning. It includes a single ultrasonic generator and operates at a working frequency of 40 KHz with a sweep system ± 2%.
Equipped with 1 emitter with 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with an aluminium alloy body, the unit ensures reliable results.
With a capacity of 20 gallons, the MOT-75 is ideal for detailed and precise cleaning tasks. This unit is compact yet powerful, with a weight of 156 lb and overall dimensions of 42” x 23” x 35”, making it a versatile option for various cleaning needs.
The ultrasonic cleaning equipment MOT-75 of Tierratech is the perfect choice for those seeking superior cleaning efficiency for smaller parts in the automotive industry and motor components
- Ultrasonic power: 800Wp (1600Wp-p)
- 1 ultrasonic generator with an output power of 800Wp (1600Wp-p)
- Working frequency: 40 KHz sweep system ± 2%
- 1 submersible emitter with 16 high-Performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
- General switch
- DEGAS system to degas water
- Ultrasounds timer
- Temperature selector
- Power level selector: 50% – 100%
- Tank built in INOX AISI 316 Stainless steel, 0.08″ inch thick
- External panel in fingerprint-resistant steel, 0.04″ inch thick
- Thermo-acustic isolator K-Flex Duct Net, 0.79″ inch thick
- Integrated handles on the external panel
- Stainless steel basket with anchorage system for loading, unloading and draining pieces
- 1” inch draining ball valve
- Height-adjustable silentblock legs
- Insulated tank cover in stainless steel
