MOT-50
TECHNICAL DATA
• Capacity: 13 gallons
• Internal dimensions: 24” x 12” x 12”
• Useful measurements: 22” x 10” x 9”
• External measurements: 31” x 17” x 21″
• Weight: 88 Lb
ELECTRICAL CHARACTERISTICS
• Power Supply: 240V
• Heating element: 900W (2x450W)
ULTRASONIC CHARACTERISTICS
• Ultrasonic power: 700Wp (1400Wp-p)
• 1 ultrasonic generator with an output power of 700Wp (1400Wp-p)
• Working frequency: 40 KHz sweep system ± 2%
• 14 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.

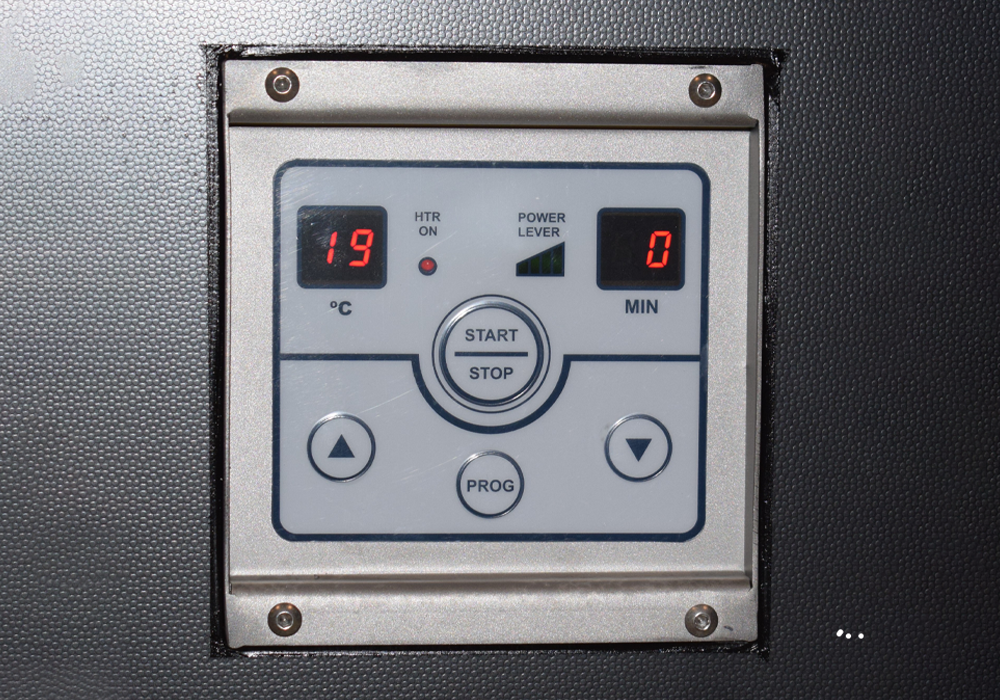

CONTROL PANEL
• General switch
• DEGAS system to degas water
• Ultrasounds timer
• Temperature selector
• Power level selector: 50% – 100%
FINISH AND ACCESORIES
• Tank built in INOX AISI 316 Stainless steel, 0,08” inch thick
• External panel in fingerprint-resistant steel, 0,03” inch thick
• Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick
• Integrated handles on the external panel

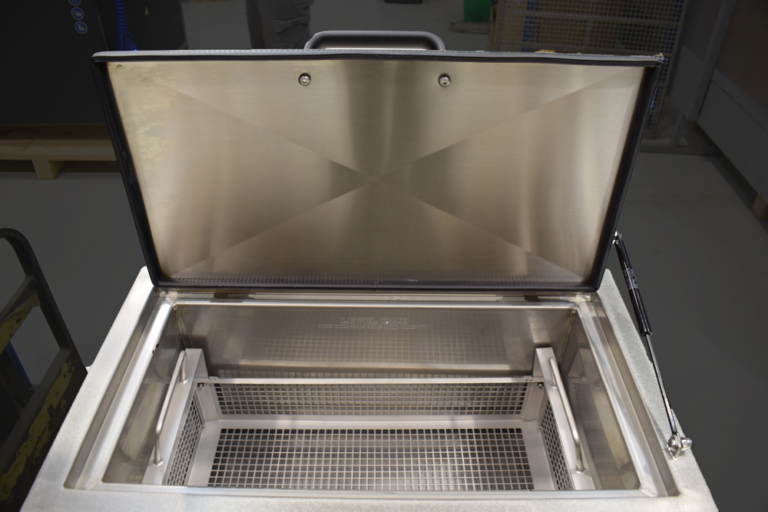

• Stainless steel basket with anchorage system for loading, unloading and draining pieces
• ½” inch draining ball valve
• Height-adjustable silentblock legs
• Insulated tank cover in stainless steel with pneumatic shock absorber
