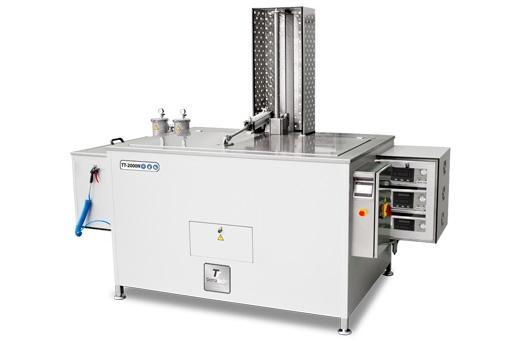

TT-2000N
TECHNICAL DATA
• Capacity: 528 gallons
• Internal dimensions: 69” x 40” x 43”
• Useful dimensions: 65” x 36” x 31”
• External dimensions: 130” x 65” x 53”
• Weight: 2755 Lb
• Pneumatic load platform: Up to 2205 lb
ELECTRICAL CHARACTERISTICS
• Power Supply: 400V
• Heating element: 2 x 9000W
ULTRASONIC CHARACTERISTICS
• Ultrasonic power: 12000Wp (24000Wp-p)
• Ultrasonic generators with an output power of 12000Wp (24000Wp-p)
• 6 submergible emitters with 2000W. (4000W. p-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
• Working frequency: 40 KHz sweep system ± 2%
CONTROL PANEL
• 4.3” touchscreen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar
• 6 outputs and 8 inputs temperature module PLC
FINISH AND ACCESORIES
• Tank built in INOX AISI 304 stainless steel, 0,09” thick
• External panel in fingerprint-resistant steel, 0,03” thick
• Thermo-acustic isolator K-Flex Duct Net, 0,8” thick
• Reinforced pneumatic platform for loading and unloading up to 2204 lb
• 2” inch draining ball valve
• Height adjustable legs
• Insulated tank cover in stainless steel with pneumatic shock absorber
• Air blow-gun for drying parts
• Integrated waterflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
• (Optional): Filtration system (stainless steel filter with polypropylene/polyester bag) for waste and mud
